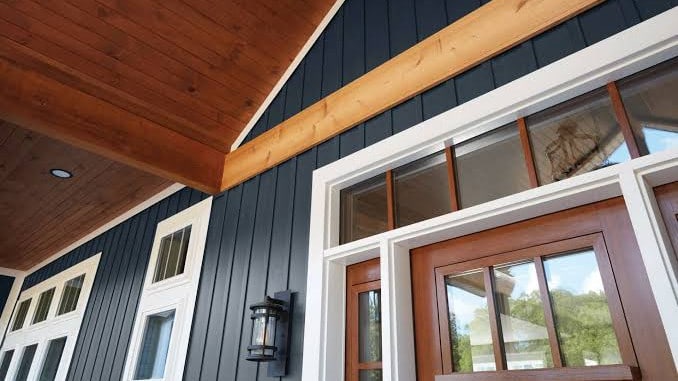

Window flashing helps direct incidental water away from the rough opening and back toward the exterior. Learn about sill pans, jamb flashing, head flashing, water-resistive barriers, VSI guidance, ASTM E2112, compatible materials, and manufacturer specifications.
Window Installation and Water-Management Guidance
```Flashing Details Around Windows: Building a Dependable Drainage Path
Window flashing is a critical part of the exterior wall system. Its purpose is to help prevent water from entering the wall assembly and to redirect incidental moisture toward the exterior or back onto a properly installed water-resistive barrier.
```A window may look completely sealed from the outside while still having incomplete flashing behind the siding or decorative trim. Caulk, J-channel, aluminum capping, lineals, and exterior casing can improve appearance, but they do not replace a correctly integrated flashing system.
```Proper flashing details depend on the window type, mounting flange, wall construction, water-resistive barrier, siding system, opening condition, and manufacturer instructions. There is no single universal detail that applies to every replacement or new-construction window.
```What Is Window Flashing?
```Window flashing is a system of corrosion-resistant, water-shedding materials installed around the window opening. Depending on the approved design, it may include sill-pan flashing, flexible flashing tape, liquid-applied flashing, sheet metal, mechanically attached membrane, self-adhered membrane, or manufacturer-specific components.
The flashing is integrated with the window and the wall’s water-resistive barrier so water moving down the wall is directed over—not behind—the layers below it.
The system should also provide a way for incidental moisture at the sill to drain toward the exterior rather than becoming trapped inside the rough opening.
```Think Like Water: Upper Layers Over Lower Layers
```One of the most important flashing principles is shingle-style layering. Upper materials should overlap lower materials so gravity carries water toward the exterior.
At a typical flanged window, the sill flashing is prepared first. The window is then installed according to its manufacturer’s requirements, followed by jamb flashing and the approved head-flashing detail. The water-resistive barrier above the opening is integrated over the head flashing so water continues down the drainage plane.
Reversing these laps can direct water behind the flashing, even when every visible edge appears carefully sealed.
```The Four Primary Window-Flashing Areas
```| Location | Primary Purpose | Common Concern |
|---|---|---|
| Sill | Creates a water-resistant base and drainage path beneath the window. | Water can become trapped if the sill is fully sealed without an approved drainage method. |
| Jambs | Protect the sides of the rough opening and overlap the sill flashing. | Short flashing or reverse laps can allow water behind the lower membrane. |
| Head | Directs water over the top of the window and adjoining trim. | Improper integration with the water-resistive barrier can direct water behind the window. |
| Corners | Connect the sill, jamb, and head details into one continuous system. | Pinholes, fish-mouths, wrinkles, and incomplete adhesion commonly occur at transitions. |
Begin with the Window Manufacturer’s Specifications
```The window manufacturer’s current installation instructions should be reviewed before the rough opening or flashing materials are prepared. Those instructions may specify the permitted flashing method, sealant locations, fasteners, flange treatment, rough-opening dimensions, shimming, attachment, and drainage details.
A new-construction window with an integral nail fin may require a different detail than a block-frame replacement window, flush-fin window, brickmould window, or full-frame replacement system.
Gentek’s SwiftLock decorative window-trim literature specifically states that its windows must first be installed using proper flashing and water-management methods before the snap-fit brickmould and casing are completed.[1]
```Before Flashing a Window, Confirm:
```- The window manufacturer, series, frame type, and mounting method.
- Whether the window uses a nail fin, brickmould, flush fin, block frame, or another attachment system.
- The condition and dimensions of the rough opening.
- The type and condition of the water-resistive barrier.
- The approved sill-pan or sill-flashing method.
- The required flashing width and overlap.
- Whether a primer is required for the substrate or membrane.
- The temperature range for applying the selected flashing product.
- Compatibility among the flashing, sealant, window frame, sheathing, and water-resistive barrier.
- How the completed sill will drain toward the exterior.
Step One: Prepare the Rough Opening
```The rough opening should be structurally sound, clean, dry, and properly sized for the window. Loose debris, protruding fasteners, damaged sheathing, old sealant, and irregular surfaces can interfere with flashing adhesion and window placement.
Existing rot, staining, mold-like growth, or deteriorated framing should be evaluated before the opening is covered. Installing a new window over unresolved water damage can conceal the problem rather than correct it.
The opening should also be checked for level, plumb, square, and sufficient clearance according to the window manufacturer’s specifications.
```Step Two: Install the Sill Flashing
```The sill is normally the first part of the rough opening to be flashed. The selected material should cover the sill and turn up the jambs as required by the approved detail.
Flexible flashing can help form the lower corners, but it must be installed without punctures, fish-mouths, unsupported voids, or folds that redirect water inward.
Some systems use a manufactured sill pan, a site-built membrane pan, or a liquid-applied product. The correct approach depends on the window instructions, wall assembly, climate exposure, and flashing manufacturer.
The exterior edge should be detailed to permit drainage. Do not assume that completely sealing every sill edge is appropriate for every window system.
```Step Three: Set and Fasten the Window
```The window should be placed, shimmed, fastened, and sealed according to the manufacturer’s instructions. Fastener type, spacing, edge distance, penetration, and sequence can vary among products.
Sealant behind a nailing flange should be placed only where specified. Some installation methods intentionally leave portions of the lower flange unsealed to preserve drainage, while other tested systems may use a different arrangement.
The window should be checked for square, level, plumb, and proper operation before the perimeter flashing is completed.
```Step Four: Flash the Jambs
```Jamb flashing is installed along both sides of the window and should overlap the sill flashing below. The flashing should extend beyond the window flange or accessory as required by the approved detail.
The Polymeric Exterior Products Association advises that window flashing should extend beyond the nail flange or adjoining accessory to help prevent water infiltration.[2]
The membrane should be rolled or pressed as directed by its manufacturer to achieve proper contact. Wrinkles, channels, and incomplete adhesion can provide a path for water behind the flashing.
```Step Five: Complete the Head Flashing
```The head-flashing detail protects the top of the opening. It generally overlaps the jamb flashing and is integrated beneath the upper water-resistive barrier so water moving down the wall is directed over the flashing.
A rigid head flashing or drip cap may also be required above the window, brickmould, lineal, or decorative head trim. The flashing should be sloped or shaped to shed water and should extend beyond the sides where required by the manufacturer or approved detail.
The head flashing should not be installed beneath a layer that directs drainage behind it. This reverse-lap condition is one of the most serious window-flashing errors.
```Integrating the Water-Resistive Barrier
```The water-resistive barrier is part of the wall’s drainage plane. Around the window, it must be cut, folded, taped, or integrated according to the approved installation sequence.
Building-code guidance requires flashing around exterior window and door openings to extend to the exterior wall finish or to the water-resistive barrier for subsequent drainage.[3]
The goal is continuity. Water that reaches the water-resistive barrier above the opening should be able to travel over the head flashing and continue toward the exterior without encountering an inward-facing lap.
```VSI Guidance for Window Flashing
```The Vinyl Siding Institute installation manual, maintained by the Polymeric Exterior Products Association, identifies window flashing, trim, and J-channel among the accessories that should be prepared before the siding panels are installed.[4]
VSI guidance recommends approved flashing around windows, doors, exterior openings, corners, and wall-to-roof intersections. It also emphasizes extending flashing beyond the window flange or accessory to help reduce water infiltration.[2]
The manual provides general siding-industry practices but directs installers to follow local requirements and the current manufacturer instructions for the specific siding and accessories being installed.[5]
This means window flashing, J-channel, utility trim, siding clearances, and decorative casing must be treated as coordinated parts of the complete exterior system.
```ASTM E2112 and Window Installation
```ASTM E2112 is the primary ASTM installation practice addressing exterior windows, sliding patio doors, swinging patio doors, and skylights used mainly in residential and light-commercial construction.[6]
The standard provides recognized installation practices for new and existing construction and assumes familiarity with wall construction, sheet-metal work, sealants, and related building methods.
ASTM E2112 should be applied together with the window manufacturer’s tested installation method, project specifications, applicable codes, and the instructions supplied with the flashing and sealant products.
```ASTM D4756 and Vinyl Siding Accessories
```ASTM D4756 addresses installation practices for rigid PVC siding, soffit, accessories, trim channels, and fasteners. Window openings are part of that installation because the siding and receiving accessories must be properly prepared around the flashed opening.
J-channel and decorative trim should conceal cut siding edges while preserving the required expansion and contraction clearance.
Neither ASTM D4756 nor VSI installation guidance eliminates the need to follow the window manufacturer’s flashing and water-management instructions.
```Flashing Products Must Be Compatible
```Adhesive flashing membranes, liquid-applied products, sealants, window frames, sheathing, rigid foam, housewrap, and aluminum components can contain different chemicals and surface treatments.
A flashing product should not be selected only by width or price. The manufacturer’s technical data should confirm substrate compatibility, application temperature, service temperature, primer requirements, exposure limits, minimum overlaps, and approved use.
Materials that are incompatible may soften, discolor, lose adhesion, stain adjoining products, or fail to create the intended seal.
```Do Not Depend on Caulk Alone
```Exterior sealant is commonly used around windows, but a surface bead of caulk should not be the only defense against water entry.
Sealant can separate, crack, lose adhesion, or be applied to contaminated surfaces. A properly layered flashing system provides a secondary drainage path if the outer seal is breached.
Sealant should be installed only at the locations identified by the window, flashing, trim, or sealant manufacturer. Applying it across drainage openings can trap water inside the assembly.
```J-Channel and Aluminum Capping Are Not Flashing Substitutes
```J-channel receives the cut edges of vinyl siding and creates a finished border around the window. It is not intended to replace the concealed flashing behind the cladding.
Aluminum trim coil can be custom-formed over wood casing or brickmould, but it must be shaped and lapped so water is directed outward. Attractive aluminum capping can still conceal an incomplete flashing detail.
Decorative trim should be installed after the window and underlying water-management system have been completed according to the manufacturer’s requirements.
```Replacement Windows Require Careful Evaluation
```Replacement-window projects can present additional challenges because the original flashing may be concealed behind existing siding, trim, brick, stucco, or aluminum capping.
An insert replacement placed inside an existing frame may not provide direct access to the original rough-opening flashing. A full-frame replacement generally exposes more of the opening but may require substantial reconstruction of the siding and drainage plane.
The replacement method should be selected after evaluating the existing frame, sill, sheathing, water-resistive barrier, exterior cladding, and evidence of previous leakage.
```Brick, Stone, and Masonry Openings
```Windows installed in brick or stone veneer require coordination among the window, flashing, masonry opening, sill, lintel, drainage cavity, weeps, and adjoining wall system.
Sealant joints between the window and masonry must be properly sized and supported. Sealant should not be used to conceal missing end dams, incomplete sill flashing, or interrupted drainage paths.
Masonry details can differ substantially from vinyl siding installations and may require project-specific design from the window, flashing, masonry, or building-envelope professional.
```Bay and Bow Window Flashing
```Bay and bow windows project beyond the wall and introduce additional horizontal and sloped surfaces. The head, seat board, lower exterior cover, cable supports, roof assembly, and side transitions must all be protected.
These windows should be installed using the manufacturer’s complete support, insulation, flashing, roofing, and exterior-finishing instructions.
Field-built roofs and coil coverings should not be improvised without confirming how water will drain at the head, sidewalls, lower corners, and wall connection.
```Common Window-Flashing Mistakes
```- Installing the layers in the wrong order: Reverse laps can direct water behind the flashing instead of toward the exterior.
- Skipping the sill pan: Water entering near the window may have no dependable drainage path.
- Sealing the sill indiscriminately: Excess sealant can block drainage that the window system was designed to preserve.
- Stopping flashing at the flange edge: The flashing may need to extend beyond the flange or accessory to provide effective coverage.
- Ignoring lower corners: Gaps, wrinkles, and pinholes at the sill-to-jamb transition can become leakage points.
- Applying membrane to a dirty or wet surface: Poor preparation can prevent proper adhesion.
- Using incompatible products: Flashing, sealant, window frames, foam, housewrap, and substrates must be chemically compatible.
- Treating J-channel as flashing: Siding trim conceals panel edges but does not replace the drainage-plane detail.
- Covering damaged wood: New windows and trim should not conceal unresolved rot or moisture intrusion.
- Ignoring manufacturer specifications: The approved sequence, materials, fasteners, sealants, and drainage details vary among window systems.
Inspecting the Work Before Siding Is Installed
```The flashing should be inspected before it is covered by siding, lineals, J-channel, brickmould, or aluminum capping.
Check the sill corners, membrane adhesion, jamb overlaps, head-flashing integration, water-resistive barrier, penetrations, fasteners, and drainage path.
Correcting a visible flashing defect is normally easier before the exterior finish has been completed.
``````“A good flashing detail gives water a clear path back to the exterior. The sill, jambs, head flashing, water-resistive barrier, window, and siding trim all have to work together. Caulk and decorative trim may finish the appearance, but they should never be expected to replace the concealed water-management system.”
```
Window Flashing Is Part of a Complete Wall System
```A dependable window opening depends on compatible framing, sheathing, sill flashing, jamb flashing, head flashing, water-resistive barrier, window components, fasteners, sealants, insulation, siding, J-channel, and exterior trim.
Planning these materials before installation begins can reduce jobsite improvisation and help ensure that each layer connects to the next.
The best results come from combining VSI installation guidance, ASTM E2112, applicable building requirements, current manufacturer specifications, compatible materials, and experienced installation practices.
```Talk with the Exterior Specialists at Suburban Wholesale & Supply
```Suburban Wholesale & Supply helps contractors, builders, remodelers, property owners, and homeowners identify windows, flashing membranes, water-resistive barriers, J-channel, lineals, utility trim, aluminum coil, sealants, fasteners, and related exterior products.
Our experienced team can help review product compatibility and locate current manufacturer information for the window, siding, and trim systems selected for a project.
Bring the window manufacturer and series, wall construction, siding profile, opening measurements, project photos, and existing material information whenever possible.
```Standards and Technical References
```- Gentek Building Products, Signature Elite TrimEssentials Full-Frame Replacement System with SwiftLock Technology.
- Polymeric Exterior Products Association, J-Channel Tricks and Window-Flashing Installation Tips.
- International Code Council, International Residential Code, Exterior Window and Door Opening Flashing Requirements.
- Polymeric Exterior Products Association and the Vinyl Siding Institute, Vinyl Siding Installation Manual.
- Polymeric Exterior Products Association, Vinyl Siding Installation Best Practices and Manufacturer-Instruction Guidance.
- ASTM International, ASTM E2112, Standard Practice for Installation of Exterior Windows, Doors and Skylights.
- ASTM International, ASTM D4756, Standard Practice for Installation of Rigid Poly(Vinyl Chloride) PVC Siding and Soffit.
- Current installation instructions, technical data, compatibility information, exposure limits, application-temperature requirements, and warranty provisions published by the manufacturers of the selected window, flashing, sealant, water-resistive barrier, siding, and trim products.
Technical note: Window-flashing requirements vary according to the window design, mounting method, wall construction, water-resistive barrier, exterior cladding, rough-opening condition, exposure, flashing material, sealant, climate, and manufacturer specifications. This article provides general educational information and does not replace current manufacturer instructions, approved construction documents, applicable building codes, project-specific details, or evaluation by a qualified building-envelope professional.
