Exterior Trim and Color-Matching Guidance
```Gentek Aluminum Coil Matching Guide: Choosing the Right Trim Color and Finish
Aluminum trim coil is one of the finishing materials that brings an exterior remodeling project together. It can be custom-formed around windows, doors, fascia boards, rake boards, frieze boards, and other exterior details to create a clean, coordinated appearance.
```Choosing the right Gentek aluminum coil involves more than finding a color with a familiar name. The siding color, trim-coil number, coating type, sheen, texture, surrounding materials, and natural lighting can all influence how closely two exterior products appear to match.
```For homeowners, contractors, and remodelers in Bettendorf, Iowa, and throughout the Quad Cities, this guide explains how to approach Gentek aluminum coil matching with greater confidence while following VSI guidance, applicable ASTM standards, and current manufacturer specifications.
```What Is Aluminum Trim Coil?
```Aluminum trim coil is a continuous roll of factory-finished aluminum that can be cut and shaped with a portable brake. Installers form the material into custom exterior coverings and trim components that fit the dimensions of a specific home.
Common applications include window and door capping, fascia coverings, rake trim, frieze boards, beam wraps, porch trim, and transitions between siding and other exterior materials.
Unlike a preformed accessory, aluminum coil gives an experienced installer the flexibility to create project-specific bends, hems, returns, laps, and profiles. The finished shape must still be planned carefully so it sheds water, allows for material movement, and does not interfere with existing drainage or ventilation.

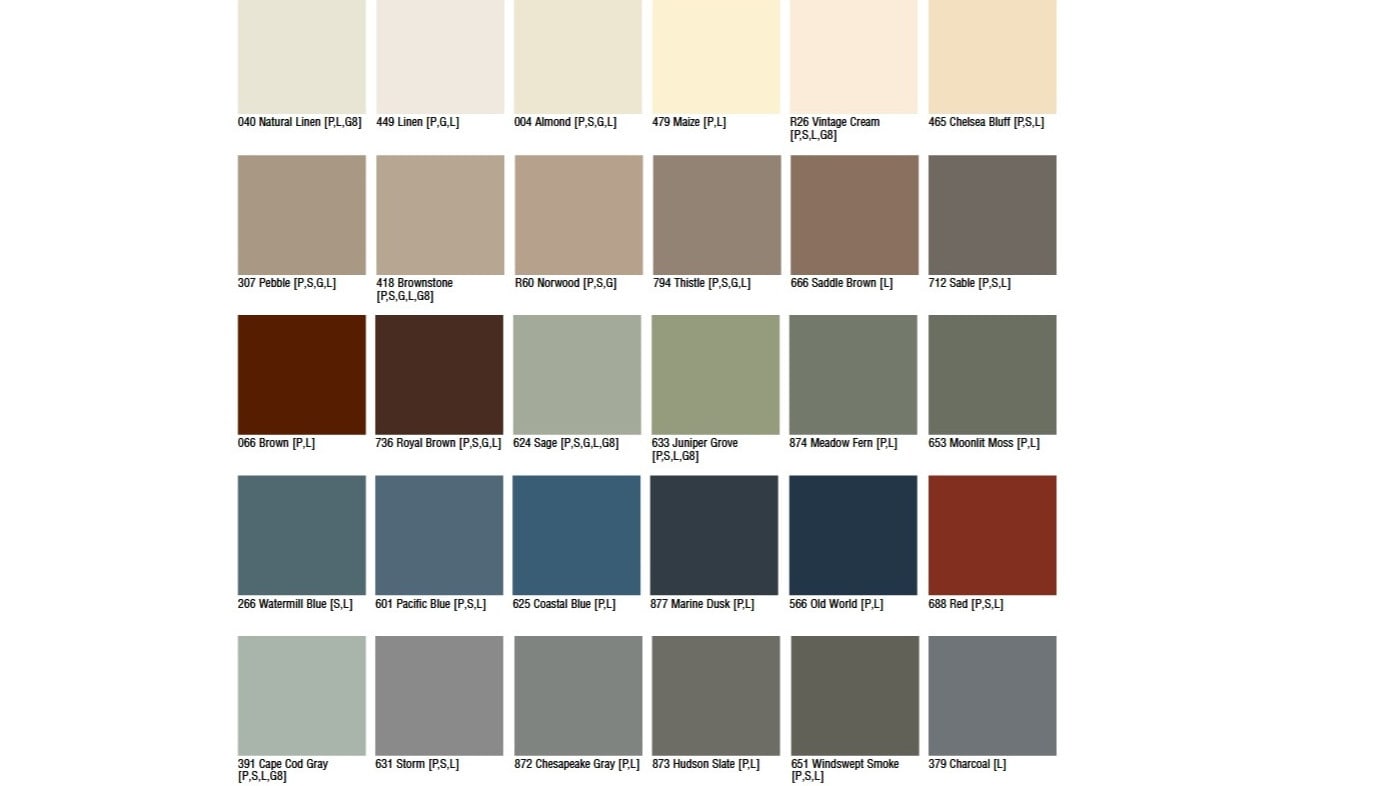

```Understanding Gentek’s Coil Color Selector
```Gentek publishes a coil color selector that identifies available aluminum trim-coil colors by name, product number, and coating availability. The guide is designed to help contractors and homeowners coordinate trim coil with Gentek siding, window, soffit, fascia, and rainware colors.[1]
Each color in the selector may include letter codes indicating the finishes or coil products in which that color is available. A color may be offered in one coating system but not another, so the color name alone is not enough to confirm availability.
The Gentek guide also cautions that printed color chips can vary from the actual product. Final decisions should be made using current physical samples whenever possible.[1]
```The Most Important Parts of a Coil Match
```| Matching Factor | Why It Matters |
|---|---|
| Color name | Identifies the intended Gentek color family, but the same or similar name may not guarantee an identical appearance across different materials. |
| Gentek color number | Helps confirm the specific coil formulation instead of relying only on a descriptive color name. |
| Coating system | Poly, PVC, Performance G8, steel coil, and gutter coil may have different texture, gloss, and performance characteristics. |
| Gloss level | A higher-gloss trim can appear lighter or more reflective than lower-gloss siding, even when the pigments are closely coordinated. |
| Surface texture | Smooth aluminum, woodgrain vinyl, composite cladding, and painted windows reflect light differently. |
| Physical sample | A current sample provides the most dependable way to compare the actual color, finish, and sheen at the project location. |
Matching by Color Number, Not Name Alone
```One of the safest ways to order Gentek trim coil is to verify both the color name and the corresponding Gentek color number. Names such as Sandstone, Wicker, Black, Dover Gray, Canyon Clay, Smoked Timber, and Iron Ore may be familiar, but the identifying number helps distinguish the exact coil selection.
Similar exterior colors can exist across several manufacturers, and the same descriptive name may be used for products that are not exact matches. Even within one manufacturer’s portfolio, window colors, siding colors, and coil finishes may require a specific cross-reference.
Before placing an order, confirm the product line, color name, color number, coating code, roll width, thickness, and quantity.
```Gentek Coil Finish Options
```Gentek offers aluminum trim coil in different factory-applied coating systems. The available finish can influence the color appearance, surface feel, formability, resistance to handling damage, and long-term appearance.
Poly, or LoMar, Finish
Gentek describes its Poly, or LoMar, coating as a polyester finish with a soft, low-luster satin appearance and resistance to surface marring and scuffing.[2]
PVC Finish
Gentek describes its PVC finish as a premium semigloss coating with additional thickness intended to provide strong resistance to wear and abrasion.[2]
Performance G8 Finish
Gentek’s coil selector describes Performance G8 as a low-gloss, lightly textured coating system formulated for ultraviolet resistance, stain protection, and coordination with selected Gentek siding and window colors.[1]
```Before Ordering Gentek Aluminum Coil, Confirm:
```- The exact siding, window, soffit, fascia, or trim product being matched.
- The manufacturer and product line.
- The official color name.
- The Gentek coil color number.
- The available coating designation.
- The required coil width and thickness.
- Whether the project requires aluminum, steel, or gutter coil.
- Whether the trim will be a direct match or a deliberate contrasting color.
- Whether a current physical sample has been compared at the jobsite.
- Whether all required rolls should come from the same current production selection.
Why Printed and Digital Colors Can Look Different
```Printed brochures, computer monitors, tablets, and phones cannot reproduce an exterior coating with complete accuracy. Screen brightness, printer settings, paper stock, surrounding colors, and indoor lighting can all change how a sample appears.
Gentek specifically notes that printed color chips may vary from the actual product and recommends using real product samples when making a final selection.[1]
Online color tools are useful for narrowing choices, but they should be treated as design aids rather than final approval samples.
```Compare Samples in Natural Light
```Exterior colors should be compared outdoors whenever possible. Morning light, direct afternoon sun, shade, cloud cover, and reflected light from nearby surfaces can all affect the perceived match.
Dark colors may reveal gloss differences more clearly than light colors. A black window frame, black siding accessory, and black aluminum coil can each reflect light differently because their materials and surface textures are not identical.
Place the coil sample directly beside the siding, window, or trim sample and examine the combination from several angles. It is also helpful to view the samples against the home’s brick, stone, roofing, doors, and other permanent exterior materials.
```Exact Match Versus Coordinated Match
```An exact visual match is not always possible when two exterior products are made from different materials or use different coating technologies. Vinyl siding, composite cladding, painted aluminum, steel, and window frames can have different textures and gloss levels.
In many cases, the goal is a coordinated match rather than a laboratory-identical surface. From normal viewing distances, properly selected colors should create a consistent and intentional appearance.
When a close match is unavailable, choosing a deliberate contrast often produces a better result than using a color that appears almost—but not quite—the same.
```Matching Gentek Coil to Siding
```Gentek’s coil color selector includes numerous colors intended to coordinate with popular siding colors. Availability varies by coating and coil type, so each selection should be checked against the current guide.[1]
Matching coil is commonly used to wrap window trim, door trim, fascia, and other wood components so they coordinate with the surrounding siding.
When the siding has a pronounced woodgrain or low-gloss finish, the smoother aluminum surface may reflect light differently. Comparing actual samples helps determine whether a direct match or contrasting trim color provides the best finished appearance.
```Matching Gentek Coil to Windows
```Gentek’s selector includes a dedicated section for matching coil to selected Gentek window colors. Certain window finishes have a corresponding coil color that may use a different name or identifying number than the window itself.[1]
This is especially important with black, bronze, beige, clay, green, gray, and other specialty window colors. Ordering by a general description without consulting the manufacturer’s cross-reference can lead to an obvious mismatch.
The coil sample should be compared with the window frame, exterior capstock or paint finish, siding, and surrounding trim before the final order is approved.
```Matching Coil to Soffit, Fascia, and Rainware
```A coordinated exterior often includes siding, soffit, fascia, gutters, downspouts, window trim, and door trim in related colors. Gentek’s broader color system is designed to help coordinate products across vinyl, aluminum, and steel categories.[3]
However, not every color is available in every product. A siding color may be offered in Poly coil but not gutter coil, or a window color may require a specific Performance G8 selection.
Review the product codes shown in the current Gentek selector before assuming that one named color is available throughout the entire exterior package.
```VSI Guidance for Aluminum Trim
```The Vinyl Siding Institute installation manual, maintained by the Polymeric Exterior Products Association, recognizes field-formed trim and aluminum accessories as part of a complete exterior installation.[4]
VSI guidance states that aluminum trim pieces should be fastened with aluminum or stainless-steel fasteners. This helps reduce compatibility and corrosion concerns that can arise when dissimilar or unapproved fasteners are used.[4]
The manual also emphasizes that siding panels and accessories must be able to move freely as temperatures change. Field-formed aluminum trim should not be installed in a way that pins vinyl siding or blocks its required expansion clearance.
VSI guidance should be used together with the current instructions supplied by the siding, window, coil, and accessory manufacturers.
```ASTM Standards and Aluminum Trim Coil
```ASTM standards provide recognized specifications and testing guidance for aluminum sheet and coil-coated building products. The standards do not determine which Gentek color should be selected, but they provide important technical context for material quality and coating performance.
ASTM B209/B209M
ASTM B209/B209M covers aluminum and aluminum-alloy flat sheet, coiled sheet, and plate in designated alloys and tempers. The standard addresses the underlying aluminum sheet material rather than a specific Gentek color or proprietary coating system.[5]
ASTM D7893
ASTM D7893 provides guidance for preparing, testing, and rating corrosion-test panels for coil-coated building products. It recognizes that cut edges, damaged areas, and fabricated locations can be exposed to environmental stresses and that coating systems should be evaluated using appropriate test methods.[6]
ASTM D4756
ASTM D4756 addresses the installation of rigid PVC siding, soffit, accessories, trim channels, and fasteners. It reinforces the need to follow product-specific manufacturer instructions and applicable building requirements when aluminum trim is used as part of a vinyl siding installation.
```Manufacturer Specifications Take Priority
```Gentek’s current specifications should be reviewed before ordering, storing, forming, or installing aluminum trim coil. Product dimensions, thickness, color availability, coating options, finish characteristics, and warranty terms can change over time.
Gentek currently lists a 24-inch aluminum trim-coil product with a nominal thickness of .019 inch in Poly and PVC finish options for a portfolio-specific selection. Other Gentek coil products and finishes may have different specifications.[2]
Always verify the specification for the exact product being purchased rather than applying one brochure’s information to every Gentek aluminum coil.
```Why Coil Thickness Matters
```Coil thickness can affect formability, rigidity, handling, and the appearance of the finished trim. A wider flat surface may reveal waves or uneven framing more easily than a narrow profile with several bends.
Thickness should not be selected independently of the manufacturer’s product specifications or the intended application. The installer must also account for brake settings, bend radius, hems, substrate condition, and fastening.
Adding properly planned bends and returns can increase the rigidity of a formed trim profile while creating cleaner edges and safer terminations.
```Forming Aluminum Coil Correctly
```Aluminum trim coil is commonly shaped on a portable siding brake. Accurate measurements and consistent bends are essential because the formed trim must fit the existing window, door, fascia, or wood trim without trapping water.
The installer should avoid unnecessarily sharp bends, excessive reworking, surface scratching, and fastening patterns that create visible distortion.
Protective films, when present, should be handled according to the manufacturer’s directions. Cutting surfaces, brakes, and tools should be clean so metal shavings or debris do not damage the factory finish.
Finished profiles should include appropriate hems, laps, returns, and drainage details for the specific application.
```Aluminum Capping Is Not a Substitute for Flashing
```Aluminum coil can create a clean exterior covering around a window or door, but decorative capping does not replace properly installed flashing or a water-resistive barrier.
The underlying opening should already be integrated with the wall’s drainage plane. The formed aluminum must then be installed in a sequence that directs water toward the exterior instead of behind the cladding.
Open joints, reverse laps, blocked drainage paths, and excessive sealant can lead to trapped moisture even when the visible aluminum appears neat.
```Common Aluminum Coil Matching Mistakes
```- Ordering by color name alone: A color name may not identify the exact Gentek coil number, coating, or intended product match.
- Using a screen image as final approval: Monitors and phones cannot reproduce the actual color, gloss, and texture reliably.
- Ignoring the finish code: Poly, PVC, Performance G8, steel coil, and gutter coil may not share the same availability or appearance.
- Expecting different materials to look identical: Vinyl, aluminum, steel, composite, and painted window surfaces reflect light differently.
- Comparing samples only indoors: Interior lighting can hide undertones and gloss differences that become visible outdoors.
- Failing to verify the current selector: Colors, finishes, product codes, and availability can change.
- Mixing old and new weathered materials: Existing siding or trim may have faded and may no longer match a new factory sample.
- Using improper fasteners: Aluminum trim should be installed with compatible fasteners as directed by VSI and the manufacturer.
- Forming trim without drainage planning: Attractive capping can still trap water if laps and returns are installed incorrectly.
- Ignoring manufacturer specifications: The exact coil product determines thickness, finish, availability, handling, and warranty requirements.
Matching New Coil to an Existing Exterior
```Matching new aluminum coil to an older exterior can be more difficult than coordinating materials for a complete new installation. Existing siding, windows, fascia, or gutters may have changed in appearance because of ultraviolet exposure, dirt, oxidation, cleaning, or normal weathering.
A current factory color may be the correct original match but still appear different beside a product that has been exposed outdoors for many years.
When replacing trim on only one section of a home, compare the new coil with the actual existing materials. In some situations, replacing or wrapping a complete visual section creates a more consistent result than attempting a small spot match.
```Why These Details Matter in Bettendorf, Iowa
```Bettendorf and the surrounding Quad Cities experience hot summers, cold winters, strong winds, rain, snow, ice, and repeated freeze-and-thaw cycles. Exterior trim must be selected and installed with these seasonal conditions in mind.
Dark colors can become significantly warmer in direct sunlight, while winter temperatures can make coatings and metals less forgiving during handling and forming. Installers should follow manufacturer recommendations for storage, preparation, forming, and installation temperature.
Many Bettendorf-area homes also combine brick, stone, vinyl siding, composite cladding, replacement windows, painted doors, roofing, and several generations of exterior improvements. A physical sample comparison helps ensure the new coil coordinates with the entire exterior rather than one product in isolation.
Local wind and precipitation also reinforce the importance of compatible fasteners, properly directed laps, secure forming, and an intact drainage plane behind the finished trim.
``````“A successful aluminum coil match involves more than choosing a familiar color name. We look at the Gentek color number, coating type, gloss, surrounding products, and an actual sample whenever possible. That extra attention helps the finished trim look intentional and coordinate with the entire exterior.”
```
Gentek Aluminum Coil Is Part of a Complete Exterior System
```Aluminum trim coil should be coordinated with the siding, windows, doors, soffit, fascia, gutters, flashing, water-resistive barrier, sealants, and fasteners used on the project.
Planning the color and finish before installation begins can reduce delays, avoid mismatched materials, and help ensure enough coil is available to complete all related elevations.
The best results come from combining Gentek’s current color selector and product specifications with VSI installation guidance, applicable ASTM standards, local building requirements, physical samples, and experienced installation practices.
```Talk with the Exterior Specialists at Suburban Wholesale & Supply
```Suburban Wholesale & Supply serves contractors, builders, remodelers, property owners, and homeowners throughout Bettendorf, Davenport, LeClaire, Eldridge, Moline, Rock Island, and the greater Quad Cities area.
Our experienced team can help identify Gentek aluminum trim coil, siding, soffit, fascia, accessories, fasteners, water-resistive barriers, and related exterior products for your next project.
Bring the product name, color, manufacturer information, and an existing sample whenever possible. Always verify the current Gentek color selector and specifications before placing a final order.
```Standards and Technical References
```- Gentek Building Products, Gentek Aluminum Coil Color Selector.
- Gentek Building Products, Aluminum Trim Coil Product Specifications and Coating Information.
- Gentek Building Products, Color and Design: Color Clear Through Exterior Coordination System.
- Polymeric Exterior Products Association and the Vinyl Siding Institute, Vinyl Siding Installation Manual.
- ASTM International, ASTM B209/B209M, Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate.
- ASTM International, ASTM D7893, Standard Guide for Corrosion Test Panel Preparation, Testing, and Rating of Coil-Coated Building Products.
- ASTM International, ASTM D4756, Standard Practice for Installation of Rigid Poly(Vinyl Chloride) PVC Siding and Soffit.
- Current installation instructions, color selectors, technical data, product specifications, and warranty requirements published by Gentek and the manufacturers of the adjoining exterior products.
Technical note: Color appearance can vary between materials, coating systems, gloss levels, production periods, printed literature, digital screens, and weathered products. Gentek product availability and specifications may change. This article provides general educational information and does not replace current manufacturer instructions, physical sample approval, applicable building codes, or project-specific installation requirements.
